IRONMAN(ENGLISH POOL)



BORN ON THECONSTRUCTION SITE OF FACTORY NO. 3 IN 2018
EXPLORES STRUCTURAL MINIMALISM
01 - THE GENESIS: MATERIAL TRANSLATION
• We stripped away traditional ornamentation, liberating raw, hollow architectural steel pipes from their structural duties and transforming them into the aesthetic backbone of a precision billiard table.
%E5%89%AF%E6%9C%AC%E5%89%AF%E6%9C%AC_upscayl_2x_upscayl-standard-4x%E5%89%AF%E6%9C%AC%E5%89%AF%E6%9C%AC.jpg)
1.FACTORY NO. 3 (2018)
2.RAW STEEL PIPES
3.STRUCTURAL MINIMALISM
The spirit of construction and the language of steel
Hollow structural steel pipes, freed from their structural duties.
Remove ornamentation, retain pure structure.
02 - THE ANCHOR: THE INVERTED "i" DESIGN
• The table's visual gravity converges on four primary legs. Forged from hollow steel cylinders, their form is distilled into an inverted lowercase letter "i", with the perfectly vertical column culminating directly in a sleek, metallic-finished leveling disc.
• The Functional Narrative: The base disc provides tournament-grade micro-calibration while introducing "visual breathing room" into the heavy vertical columns.
• The Symbolic Narrative: The fusion of Iron as a material and "i" as a form unleashes the unapologetic masculinity and mechanical prowess defining the IRONMAN. The vertical column projects raw power, while the Square base grounds the center of gravity—an homage to a heroic modern archetype: unyielding on the outside, meticulously disciplined within.
FROM STRUCTURE TO FORM

1. INSPIRATION
The table leg takes the form of an invertedletter "I",This simple yet powerful shape becomesthe core element of the entire design.

2. CONCEPT SKETCHES
From idea to form, the designer used a minimalist design philosophy to create design sketches.

3. DESIGN EXPLORATION
Simplify the structure
Emphasize the inverted "i" leg
Balance masculinity and elegance
Keep the minimalist aesthetic
03 - FORMAL LANGUAGE: SQUARE MEETS CIRCLE
• The silhouette is restrained and cerebral. The matte dark chassis features razor-sharp contours, edged only by high-tactility matte metal trims. This creates a compelling formal tension between the Square and the Circle: the rectilinear frame defines the mathematical order of play, while the cylindrical legs release the organic energy of steel.
_upscayl_2x_upscayl-standard-4x%E5%89%AF%E6%9C%AC2.jpg)
IRONMAN ( ENGLISH POOL) - SQUARE
IRONMAN ( US POOL ) - CIRCLE
DESIGN CONCEPT
BETWEEN SQUARE AND CIRCLE
FORCE AND ORDER
04 - VERSATILITY: ARENA & STATEMENT PIECE
• The Professional Club: The unyielding stability of the steel superstructure easily handles high-frequency commercial use, injecting a youthful, progressive energy into modern billiard halls.
• The Premium Lounge: Transcending sports equipment, it becomes a monumental industrial art installation. Its low-profile matte finish and sharp lines seamlessly dissolve into avant-garde social spaces.
_upscayl_3x_upscayl-standard-4x%E5%89%AF%E6%9C%AC.jpg)

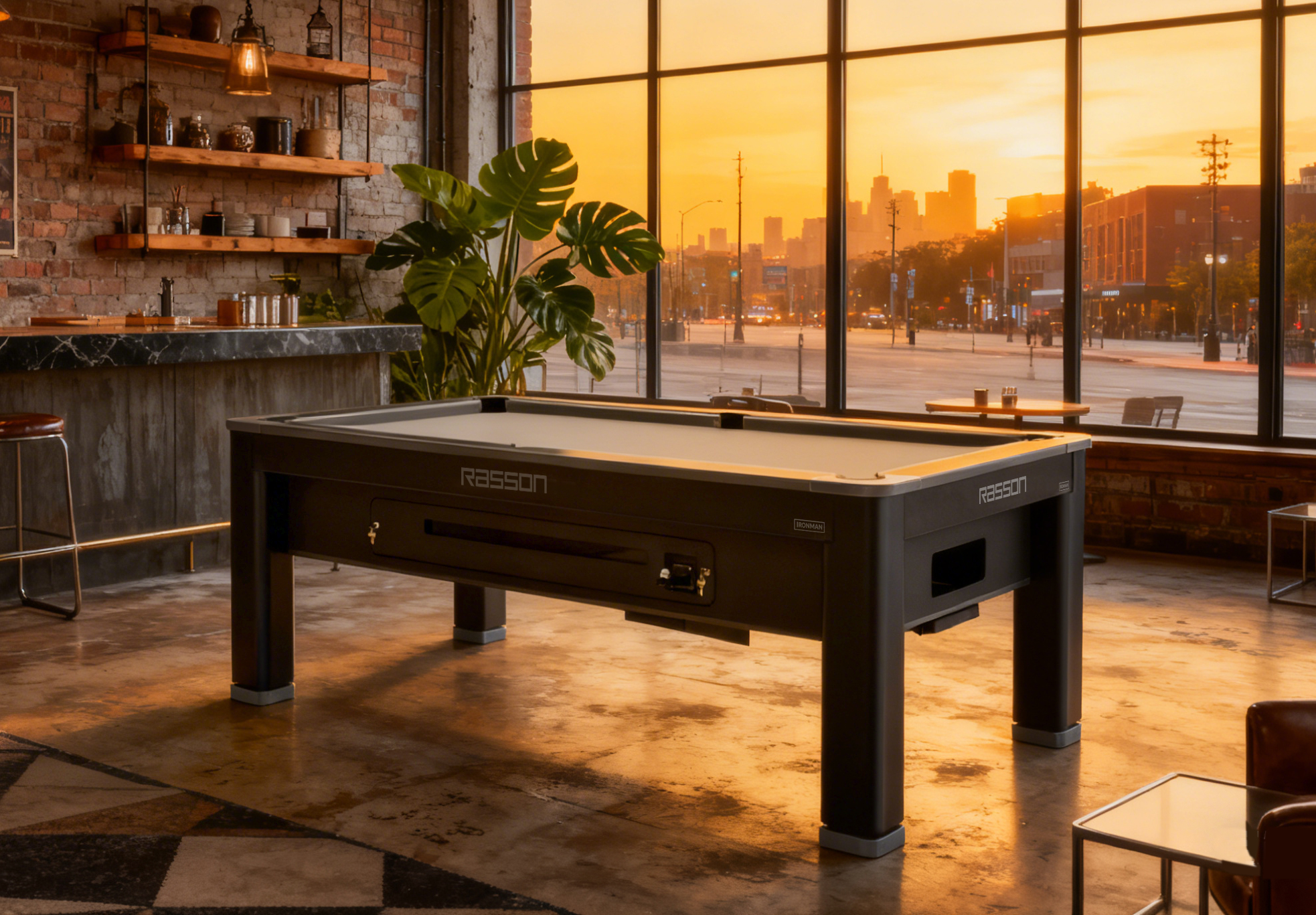

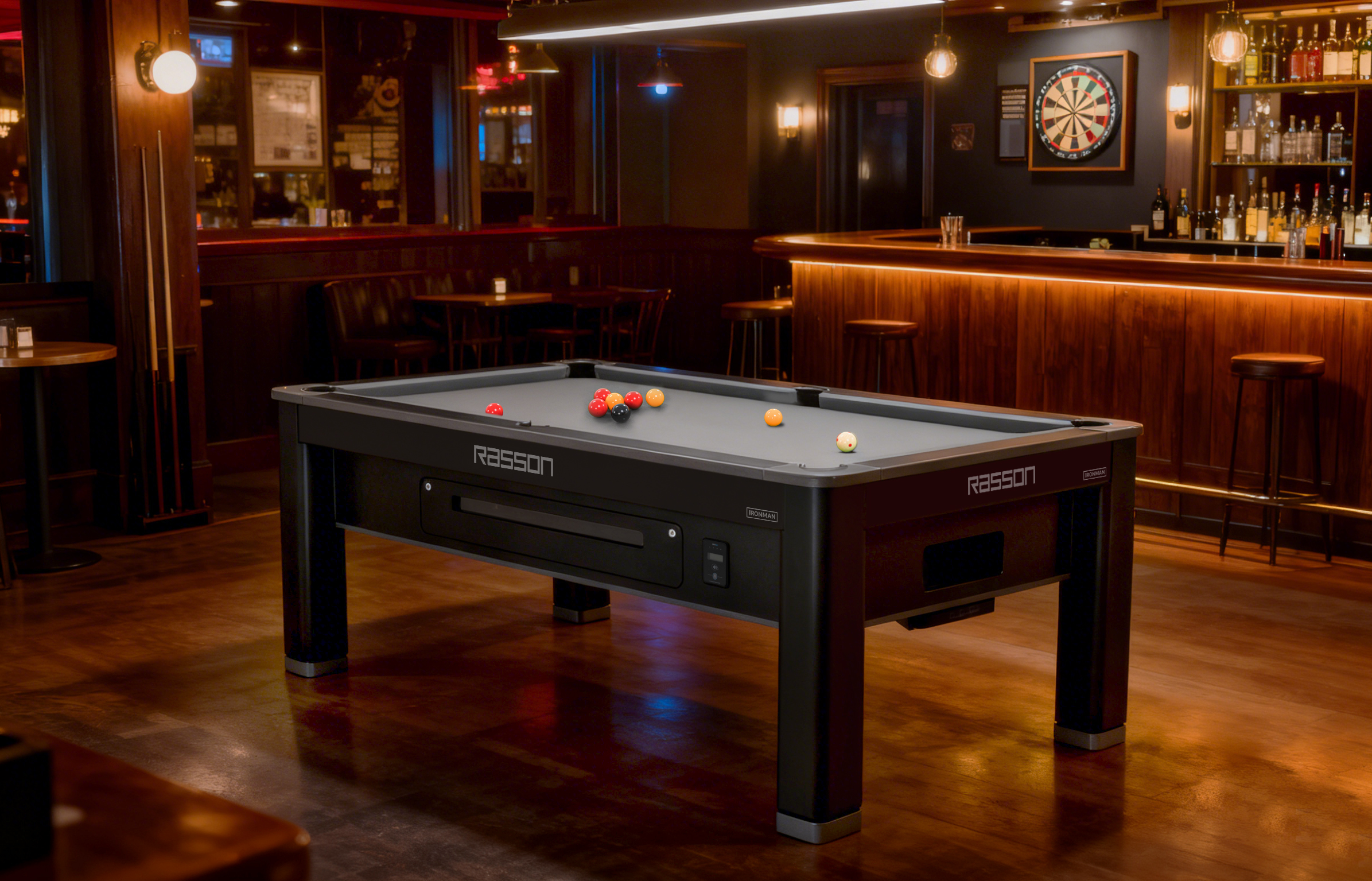

THE PROFESSIONAL CLUB

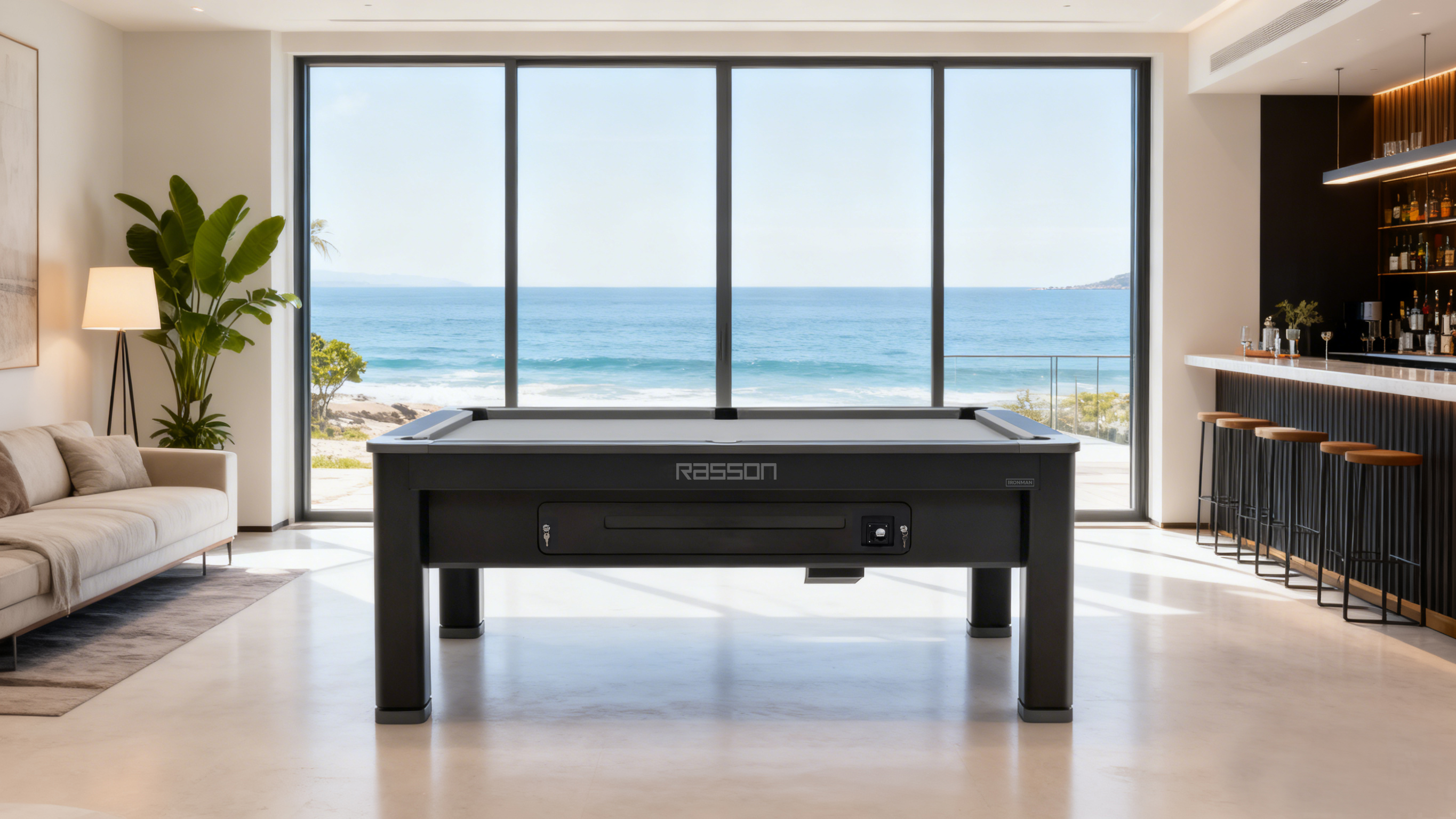

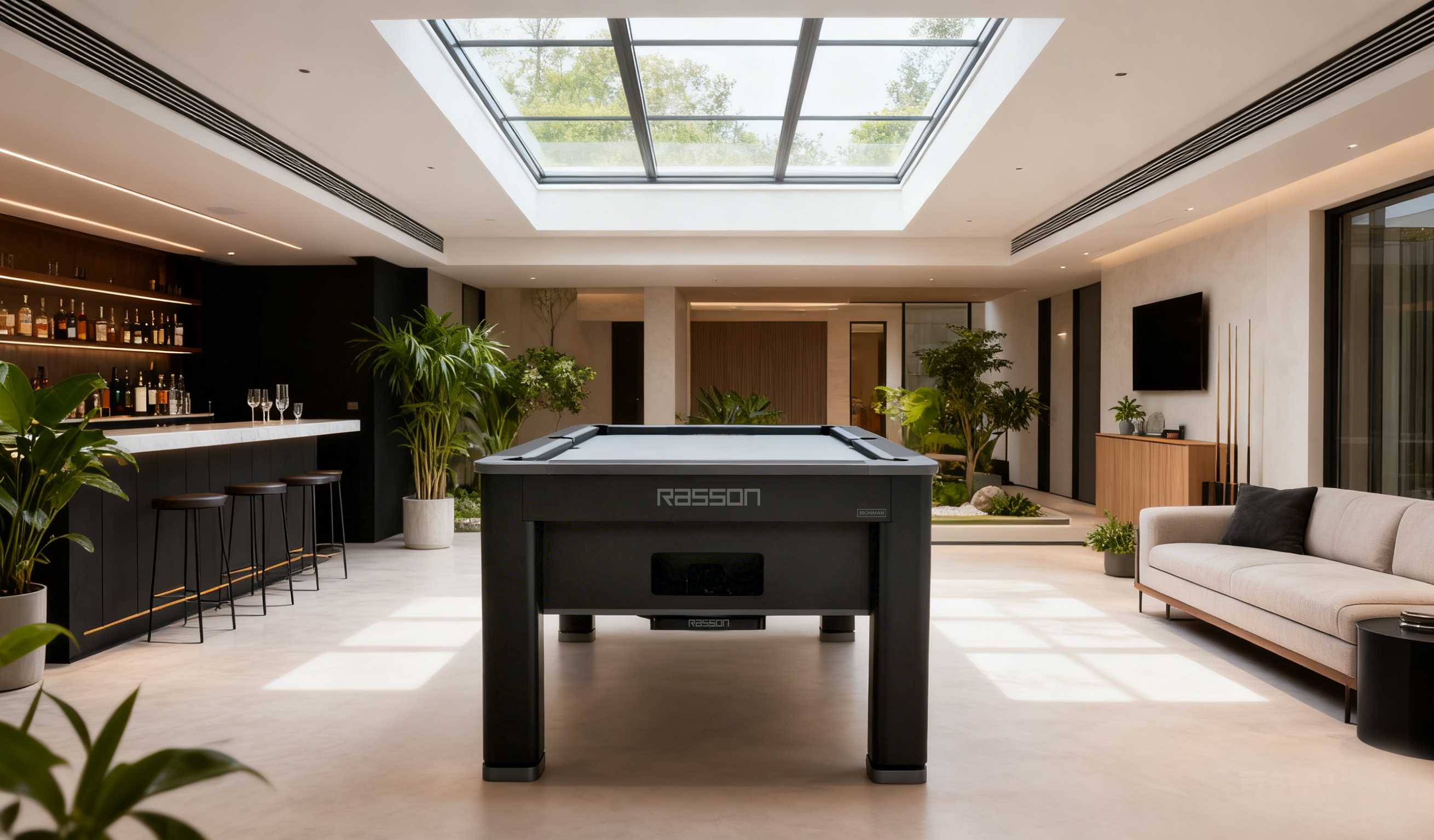

THE PREMIUM LOUNGE

DIMENSIONS
*PLAYING SURFACES: 1830MM X 915MM 72"X36"(7-FOOT)
BLACK
MATT GREY
GRAY
BLUE
![]() | ![]() | ![]() |
|---|---|---|
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() |
CONFIGURATION | DETAILS |
|---|---|
Slate | RASSON Slate(19mm thick, 1-PC) |
Rubber | RASSON PRO L77 Tournament-Grade |
Rail | Solid wood & HPL veneer |
Pocket Casting | Aluminum Alloy |
Pocket Bucket | Countersunk pocket liners(TPE) |
Cabinet | Warp-Stable Plywood |
Legs | Heavy-Duty Steel Legs |
Leg Levellers | ABS&Metal (No-lift table levellers) |
Table Color Ava. | Main Colors:Storm Black |
Metal Corner Color Ava. | Matt Grey |
Table Size Ava. | 7' (2110X1195X830mm / 83.07"X47.05"X32.68") |
Play Option | Free Play / Coin-Op / Contactless Payment |
*SUBJECT TO THE ACTUAL PRODUCT
RASSON ENGLISH POOL TRIANGLE(ABS)


CLICK IMAGE TO ENLARGE


CLICK IMAGE TO ENLARGE
RASSON TABLE COVER


/
CLICK IMAGE TO ENLARGE
IRONMAN
• Introducing the "IRONMAN" English Pool Table by RASSON.
This exceptional table features a sleek, professional black cabinet made with high-quality materials to ensure strength and a modern look. offering precise and consistent ball roll for an authentic English pool experience. The table is supported by thick, robust legs for maximum stability, keeping it perfectly level.
• To guarantee top-tier performance and standards, the "Ironman" is recognized by the World Pool-Billiard Association (WPA). "Ironman" is the offical table of WPA Blackball World Championships.

RASSON PREMIUM SLATE
• RASSON slate stands for benchmark quality in the billiard industry. With over 30 years of slate manufacturing experience, it forms the core foundation of all RASSON tables.
• This table is equipped with a one-piece premium slate of 19mm thickness. The raw slate stone is quarried in Minas Gerais, Brazil, and precision-machined at RASSON’s own factory.the flatness tolerance is controlled within 0.1mm.


%E5%89%AF%E6%9C%AC.jpg)
• We innovated the structural design:
the slate edge is widened, with 18 rail holes for vertical locking with the table cushions. Another 8 fixing holes are added to firmly secure the slate to the table base.
• This upgraded structure greatly improves resistance to impact, vibration and loosening.
• It delivers consistent, predictable ball roll performance and brings revolutionary improvement to the English Pool segment.
SLATE ADJUSTMENT SYSTEM
• The 19mm slate surface is mounted on an internal beam, providing a stable and solid platform for the table .
For precise adjustments, an 16-point slate adjustment system is included.



BOX FRAME & DETACHABLE APRON DESIGN
• The Ironman completely revolutionizes the traditional English pool table cabinet structure. It resolves the long-standing pain points of conventional tables—where hinged top frames and split clips cause inconsistent cushion tension and unpredictable bounce,
ULTRA-RIGID BOX-WITHIN-A-BOX CONSTRUCTION
• The interior of the cabinet is engineered with a grid-like cross-brace skeletal system, enclosed by four heavy-duty plywood side panels. The top and bottom faces are flush-bonded with flat plywood sheets, creating an exceptionally rigid, fully boxed structure. This design offers superior compression resistance and structural stability that outperforms conventional alternatives under heavy use.


EASILY PRECISION LEVELING
• the level can be adjusted directly from the inside of the Apron using adjusting bolts,without removing the slate or outer rim.



RASSON PRO L77 TOURNAMENT-GRADE L-SHAPED CUSHION RUBBER
• Made of high-purity natural rubber sourced from Southeast Asia with approximately 85% natural rubber content. Adopting exclusive formulation and precise vulcanization technology to build a stable elastic cross-linking structure for lasting and consistent rebound performance.
• Specified mechanical properties: Shore A Hardness 36±5, Rebound Rate 75%±5%.
• Matched with RASSON’s original vertically-spliced solid wood rail system and professional adhesive process, the cushion bonds tightly to the rail with zero hollow gaps. The full rail assembly provides robust support, delivering uniform rebound across all six rails. It maintains reliable playing feel even under heavy long-term use.

RASSON PRO L77 TOURNAMENT-GRADE
L-SHAPED CUSHION RUBBER
Natural rubber content: 85%
Specified mechanical properties:
Shore A Hardness 36±5
Rebound Rate 75%±5%
PLAY OPTION(OFFERS MULTIPLE MODES)
FREE PLAY
• Ready for home use with no accessories needed
COIN-OP / ELECTRONIC COIN-OP SYSTEM
• Ironman can be equipped with a Coin-op / Electronic Coin-op system, which is suitable for billiard hall settings. After inserting a coin, the ball in the storage window rolls through the track into the outlet, and start the game.
.jpg)
COIN-OP

ELECTRONIC COIN-OP
CONTACTLESS (CARD) SYSTEM
• Ironman can also be equipped with a more advanced Contactless (card) System , Modern card-swipe payment for commercial venues.


MOTOR DRIVER CONTROL BOXSUPPORTS THE FOLLOWING DEVICES
Single 3s low-level negative pulse on valid coin detect.
Idle: High. Pull low for 3s then restore High. No repetitive pulses.One pulse per coin.

PAYMENT MODE TO FREE PLAY MODE CONVERTER
I. Overview
• This conversion kit is specifically engineered for Rasson commercial payment-controlled billiard tables. Requiring no complex disassembly of the table structure, this modular replacement instantly bypasses the ball-retention mechanism. It enables operators and maintenance staff to effortlessly and rapidly switch the table from "Coin-Op / Card Payment Mode" to "Unobstructed Free Play Mode."
II. Quick Conversion Steps
1. Unlock the Ball Window: Use the dedicated table key to unlock and open the ball storage window panel.
2. Remove the Ball Tray: Take out the original internal ball storage tray.
3. Insert the Converter: Align and insert the dedicated plastic converter directly into the existing ball storage slot. Ensure it clicks securely into place to complete the conversion.
III. Applications
• Tournaments & Private Bookings: Ideal for official billiard tournaments, club buyouts, or group events.
• Promotions & Free Trials: Suitable for pool hall free-play days, VIP member events, and promotional activities.
• Purpose Transition: Convenient for converting a commercial pay-to-play table for home use, club training, or long-term leasing.

RASSON PATENTED BALL RETURN SYSTEM
• This billiard table is equipped with RASSON’s original patented Hexagonal Radial Spoke Ball Return System, an innovative ball collection and return structure
• The main frame of the return system is extruded from aluminum alloy with a hollow cavity inside the profile, delivering outstanding structural rigidity and deformation resistance. The contact surface of the track is embedded with an ABS silent guide layer to ensure smooth ball rolling and low operating noise. The track adopts a split design with two assembled plates and reserved gaps between them. Balls roll along a double-line contact path, which reduces the contact friction area and rolling resistance.
• The ball collection is optimized: after falling into pockets, object balls travel along the hexagonal radial spoke guide tracks, converge rapidly into the central collection bin, and then divert to the side storage slots. This reduces the residence time of balls inside the tracks for faster return and quieter operation.
For independent cue ball recovery of English billiards: Sorting is achieved by the diameter difference between the smaller English cue ball and object balls.This mechanism reliably separates the cue ball from object balls and routes the cue ball back to the playing surface.


• The BJR™ Ball-Jam Releaser is an exclusive anti-jamming patented mechanism developed by RASSON for box-style pool tables, and it is an original innovation in the global box-type pool table industry.
After billiard balls fall into pockets, they may occasionally get stuck inside the ball return track. The traditional troubleshooting method is requiring disassembly of the table to retrieve trapped balls.
• The design inspiration comes from our factory’s wood dust collection bin. Wood dust rarely flows down smoothly by gravity alone. Pulsed agitation is needed to break up compacted dust and push it into the collection port. This insight led our engineering team to develop the BJR pull-rope release system.
BALL-JAM RELEASER ™ (RASSON EXCLUSIVE PATENT)

• Mounted underneath the table frame, this simple pull-rope mechanism works intuitively. When a ball jam happens, simply pull the rope under the table to agitate the trapped balls and clear the jam instantly.
No tools, no complicated maintenance, no lengthy game stoppages. It cuts venue maintenance costs, and delivers uninterrupted, satisfying gameplay for all players.
PATENT APPLICATION NUMBER:2026200318046


NLP ( NO-LIP POCKET ) ™ & ONE-PIECE CUSHION RAILS
The RASSON revolutionizes traditional English pool table design, delivering an incredibly smooth playing experience through two benchmark crafts.
ONE-PIECE CUSHION RAIL
• Seamless Rail Design: Completely eliminates the uncomfortable aluminum beading between the rubber cushion and outer wood rail, ensuring a smooth feel.
• Dropped Height (-2mm): The rail height is precisely lowered by 2mm for challenging rail shots. This allows players to level their cue lower and flatter for optimal accuracy and control.
NLP LIPLESS POCKETS
• Countersunk & Flush Profile: The pocket edges are perfectly flush with the cushion rails. This ensures the cue glides horizontally with zero obstruction from any angle.
• TPE-Metal Composite Core: A high-strength metal skeleton is embedded within premium TPE material, permanently eliminating pocket sagging while delivering a crisp acoustic feedback.
• Downward Anti-Bounce Geometry: The pocket inner walls feature a precisely calibrated geometric angle to suppress ball bouncing and "spitting," ensuring a predictable entry.
• Hidden Fastener Protection: Fully concealed internal fasteners eliminate metal contact and ball damage, while the flush profile provides an unobstructed path for rail shots.
• Tournament Standards: Built to official Ultimate Pool, IEPF, and WPA Blackball specs. Pocket openings are calibrated with micrometer precision for world-class competitive challenge.


NO-LIFT TABLE LEVELLERS
• Our precision leg leveller design lets you level the table without lifting it with multiple people. Simply use a spanner for adjustment. The base stays stationary while the inner screw rotates to raise or lower, so one person can easily and smoothly level the table.
TRADITIONAL
RASSON
